CIRCULATION DESKS - TRINITY
TRINITY SERIES
cdR | CIRCULATION DESK
If you want a continuous look between the fronts and tops of your desk, the Trinity Series is the way to go. Like all of our other circulation desks, this series is built with long term usage in mind. Only high quality materials and construction methods are used in vertical panels or structural components — never particle board.
+ FINISH OPTIONS
RCM Stains on Oak
RCM Stains on Maple
Laminates to match RCM Stains
UNIT OPTIONS
dOUBLE wIDTH DESK
Work surface grommet placed along patron length on each end. The work surface will be supported at midspan with a 1” thick stiffknee.
CDR-3253 - ELEMENTARY HEIGHT
32”H x 72”W x 30”D
CDR-3953 - ADULT HEIGHT
39”H x 72”W x 30”D
DOUBLE DRAWER CUPBOARD UNIT
Unit is supplied with two equal-width drawers. The adult height will have two adjustable shelves. The elementary height will have one adjustable shelf.
CDR-3238 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3938 - ADULT HEIGHT
39”H x 36”W x 30”D
OPEN SHELF UNIT
Adult units will be supplied with two full-depth, adjustable shelves. Elementary height units will be supplied with one adjustable shelf.
CDR-3208 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3908 - ADULT HEIGHT
39”H x 36”W x 30”D
CUPBOARD UNIT
Hinged doors will have door pulls. Adult units will be supplied with two full-depth, adjustable shelves. Elementary height units will be supplied with one adjustable shelf.
CDR-3210 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3910 - ADULT HEIGHT
39”H x 36”W x 30”D
BOOK RETURN UNIT
The front panel will have a 3”H x 12”W book-return slot, fully edgebanded, with an internal wood chute so as to allow gentle deposit of books into book truck.
CDR-3205 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3905 - ADULT HEIGHT
39”H x 36”W x 30”D
dEPRESSIBLE BOOK TRUCK
Each unit will have a depressible platform that will hold apx. 70 books. Each unit has four 3” swivel casters mounted directly to bottom.
BT-D32 - ELEMENTARY HEIGHT
22”H x 26”W x 22”D
BT-D39 - ADULT HEIGHT
29”H x 26”W x 22”D
DOUBLE DRAWER, LEFT CUPBOARD AND FILE UNIT
Cupboard on left, file drawer on right. Each adult height unit will have two box drawers, two file drawers, and two adjustable shelves inside the cupboard. Elementary height units have one box drawer, one file drawer, and one adjustable shelf.
CDR-3254 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3954 - ADULT HEIGHT
39”H x 36”W x 30”D
DOUBLE DRAWER, RIGHT CUPBOARD AND FILE UNIT
Cupboard on right, file drawer on left. Each adult height unit will have two box drawers, two file drawers, and two adjustable shelves inside the cupboard. Elementary height units have two box drawers, one file drawer, and one adjustable shelf.
CDR-3241 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3941 - ADULT HEIGHT
39”H x 36”W x 30”D
90 DEGREE open shelf corner unit
Each unit will be triangular, with an angled, open-face design and will be used to form a 90-degree transition in any desk arrangement. Adult height units will be supplied with two adjustable shelves and elementary height units will be supplied with one adjustable shelf. Open shelf corner units do not provide for wire access.
CDR-3217 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D
CDR-3917 - ADULT HEIGHT
39”H x 33”W x 33”D
90 DEGREE closed corner unit
Each unit will be triangular with an angled, closed-face design and will be used to form a 90-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.
CDR-3216 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D
CDR-3916 - ADULT HEIGHT
39”H x 33”W x 33”D
45 degree closed corner unit
Each unit will be triangular with angled, closed-face design and will be used to form a 45-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.
CDR-3225 - ELEMENTARY HEIGHT
32”H x 24.75”W x 30”D
CDR-3925 - ADULT HEIGHT
39”H x 24.75”W x 30”D
finished end panel
Each panel will be constructed using banded, matching veneer-core plywood.
NOTE: all fully assembled circulation desks will need two finished end panels unless placement is permanently next to a wall or other structure that hides the unfinished side of the service unit on the end.
CDR-3218 - ELEMENTARY HEIGHT
31.75”H x 1”W x 30.5”D
CDR-3918 - ADULT HEIGHT
38.75”H x 1”W x 30.5”D
pATRON DESK
Recessed work surface, fastened with metal cleats. Grommets are centered along the length. 6” Deep patron ledge. 29”H work surface.
CDR-3202 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3902 - ADULT HEIGHT
39”H x 36”W x 30”D
pATRON DESK UNIT w/ pencil drawer
Unit will have a recessed work surface fastened with metal cleats. The patron ledge is 6”D. The pencil drawer is centered under the work surface.
CDR-3235 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3935 - ADULT HEIGHT
39”H x 36”W x 30”D
Double-Width patron desk
Work surface is 29”H. This unit is supplied with 2 work surface grommets. Stiff-knee rests atop the toe board. Patron ledge is 6”D.
CDR-3203 - ELEMENTARY HEIGHT
32”H x 72”W x 30”D
CDR-3903 - ADULT HEIGHT
39”H x 72”W x 30”D
TWO-DRAWER FILE OPEN TOP SHELF UNIT
Each unit is an open shelf unit with two letter file drawers. Adult height units are supplied with one full-depth, adjustable shelf. Elementary height units will not have an adjustable shelf.
CDR-3214 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3914 - ADULT HEIGHT
39”H x 36”W x 30”D
90 DEGREE RADIUSED CLOSED CORNER UNIT
Each unit will be triangular with a radiused, closed-face design and will be used to form a 90-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.
CDR-3226 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D
CDR-3926 - ADULT HEIGHT
39”H x 33”W x 33”D
desk unit
Two work surface grommets placed along front edge unless otherwise specified. Sturdy work surface with knee space underneath.
CDR-3234 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3934 - ADULT HEIGHT
39”H x 36”W x 30”D
DOUBLE DRAWER KNEE SPACE UNIT
Each unit is supplied with two equal-width drawers.
CDR-3209 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3909 - ADULT HEIGHT
39”H x 36”W x 30”D
Desk with pencil drawer
The pencil drawer is centered under the work surface with knee space beneath.
CDR-3247 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3947 - ADULT HEIGHT
39”H x 36”W x 30”D
ADA Transaction unit
The unit will have a modesty panel mounted along the midline. The work surface is 32”H.
ADA NOTE: When an ADA unit is used on one end of an adult height circulation desk, an elementary finished end panel should be ordered for that end. When an ADA unit is placed between other adult units, the work surface is captured rather than continuous.
CDR-3220 - ELEMENTARY & ADULT HEIGHT
32”H x 36”W x 36”D
*ADA max 32”H
Double width ada transaction unit
Unit will have a modesty panel mounted along unit midline. The work surface is 32”H.
ADA NOTE: When an ADA unit is used on one end of an adult height circulation desk, an elementary finished end panel should be ordered for that end. When an ADA unit is placed between other adult units, the work surface is captured rather than continuous.
CDR-3221 - ELEMENTARY & ADULT HEIGHT
32”H x 72”W x 36”D
*ADA max 32”H
SINGLE DRAWER KNEE SPACE UNIT
Each unit comes standard with one full-width drawer.
CDR-3236 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3936 - ADULT HEIGHT
39”H x 36”W x 30”D
sINGLE dRAWER STACK UNIT
The adult height units will receive four drawers and the elementary units will receive three drawers.
CDR-3222 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3922 - ADULT HEIGHT
39”H x 36”W x 30”D
sINGLE dRAWER CUPBOARD UNIT
Storage drawer over cupboard storage space. The adult height unit is supplied with two adjustable shelves. The elementary height unit is supplied with one adjustable shelf.
CDR-3237 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3937 - ADULT HEIGHT
39”H x 36”W x 30”D
RIGHT FILE DRAWER OPEN SHELF UNIT
Right side file drawers, left side open shelf. Adult height unit will have one box drawer, two file drawers, and two adjustable shelves. Elementary height units will have one box drawer, one file drawer, and one adjustable shelf.
CDR-3245 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3945 - ADULT HEIGHT
39”H x 36”W x 30”D
LEFT FILE DRAWER OPEN SHELF UNIT
Left side file drawers, right side open shelf. Adult height unit will have one box drawer, two file drawers, and two adjustable shelves. Elementary height units will have one box drawer, one file drawer, and one adjustable shelf.
CDR-3244 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3944 - ADULT HEIGHT
39”H x 36”W x 30”D
SINGLE DRAWER OPEN SHELF UNIT
Unit is supplied with a full-width storage drawer over open shelving. Adult units are supplied with two full-depth, adjustable shelves. The elementary height unit is supplied with one full-depth, adjustable shelf.
CDR-3246 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3946 - ADULT HEIGHT
39”H x 36”W x 30”D
LEFT CUPBOARD OPEN SHELF UNIT
Cupboard on left side, open shelves on right side. Each adult unit will be supplied with two adjustable shelves in the cupboard, an open shelf space, and drawer above the cupboard. The elementary height will be supplied with one adjustable shelf in the cupboard and open shelf space.
CDR-3243 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3943 - ADULT HEIGHT
39”H x 36”W x 30”D
RIGHT CUPBOARD OPEN SHELF UNIT
Cupboard on right side, open shelves on left side. Each adult unit will be supplied with two adjustable shelves in the cupboard, an open shelf space, and drawer above the cupboard. The elementary height will be supplied with one adjustable shelf in the cupboard and open shelf space.
CDR-3242 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3942 - ADULT HEIGHT
39”H x 36”W x 30”D
DOUBLE DRAWER STACK UNIT
This unit consists of a double stack of drawers. The adult height unit has four file drawers. The elementary height unit has two box drawers and two file drawers.
CDR-3229 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3929 - ADULT HEIGHT
39”H x 36”W x 30”D
DOUBLE DRAWER OPEN SHELF UNIT
Each unit is supplied with two equal-width drawers over open shelving. Adult height units will be supplied with two full-depth adjustable shelves. Elementary height units will be supplied with one shelf.
CDR-3207 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3907 - ADULT HEIGHT
39”H x 36”W x 30”D
LEFT cUPBOARD fILE dRAWER uNIT
Cupboard on left side, drawers on right side. Each adult height unit will have two file drawers, one box drawer and two adjustable shelves in the cupboard. The elementary height will have one box drawer, one file drawer, and one adjustable shelf in the cupboard.
CDR-3240 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3940 - ADULT HEIGHT
39”H x 36”W x 30”D
RIGHT cUPBOARD fILE dRAWER uNIT
Cupboard on right side, drawers on left side. Each adult height unit will have two file drawers, one box drawer and two adjustable shelves in the cupboard. The elementary height will have one box drawer, one file drawer, and one adjustable shelf in the cupboard.
CDR-3239 - ELEMENTARY HEIGHT
32”H x 36”W x 30”D
CDR-3939 - ADULT HEIGHT
39”H x 36”W x 30”D
square closed corner unit
Each unit will be square, with a closed-face design and will be used to form a 90-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.
CDR-3224 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D
CDR-3924 - ADULT HEIGHT
39”H x 33”W x 33”D
45 degree radiused closed corner unit
Each unit will be triangular with a radiused, closed-face design and will be used to form a 45-degree transition in any desk arrangement. This unit is supplied with an internal wire manager unless otherwise specified.
CDR-3227 - ELEMENTARY HEIGHT
32”H x 24.75”W x 30”D
CDR-3927 - ADULT HEIGHT
39”H x 24.75”W x 30”D
90 DEGREE FLAT-FRONT OPEN SHELF CORNER UNIT
Each unit will be triangular with a flat open-front design and will be used to form a 90-degree transition in any desk arrangement. Adult units will have two adjustable shelves. Elementary units will have one adjustable shelf. Open shelf corner units do not provide wire access.
CDR-3223 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D
CDR-3923 - ADULT HEIGHT
39”H x 33”W x 33”D
90 DEGREE flat-front CLOSEd CORNER UNIT
Triangular with an flat, closed-face design. Will be used to form a 90-degree transition in any desk arrangement. Supplied with internal wire management.
CDR-3252 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D
CDR-3952 - ADULT HEIGHT
39”H x 33”W x 33”D
CORNER PATRON DESK UNIT
Creates a 90-degree transition in any desk arrangement, while providing a corner work space with a recessed work surface and patron ledge. Patron ledge is 6”D.
CDR-3232 - ELEMENTARY HEIGHT
32”H x 78.5”W x 30”D
CDR-3932 - ADULT HEIGHT
39”H x 78.5”W x 30”D
CORNER DESK UNIT
Creates a 90-degree transition in any desk arrangement, while providing a corner work space.
CDR-3233 - ELEMENTARY HEIGHT
32”H x 78.5”W x 30”D
CDR-3933 - ADULT HEIGHT
39”H x 78.5”W x 30”D
90 DEGREE CURVED PATRON DESK UNIT
Creates a 90-degree transition in any desk arrangement, while providing a corner work space with a recessed work surface and patron ledge. Patron ledge is 6”D.
CDR-3250 - ELEMENTARY HEIGHT
32”H x 78.5”W x 30”D
CDR-3950 - ADULT HEIGHT
39”H x 78.5”W x 30”D
90 DEGREE CURVED DESK UNIT
Creates a 90-degree transition in any desk arrangement, while providing a corner work space with a flat work surface.
CDR-3251 - ELEMENTARY HEIGHT
32”H x 78.5”W x 30”D
CDR-3951 - ADULT HEIGHT
39”H x 78.5”W x 30”D
90 DEGREE RADIUSED OPEN SHELF CORNER UNIT
Each unit will be triangular, with a radiused, open-face design and will be used to form a 90-degree transition in any desk arrangement. Adult height units will be supplied with two adjustable shelves and elementary height units will be supplied with one adjustable shelf. Open shelf corner units do not provide for wire access.
CDR-3228 - ELEMENTARY HEIGHT
32”H x 33”W x 33”D
CDR-3928 - ADULT HEIGHT
39”H x 33”W x 33”D

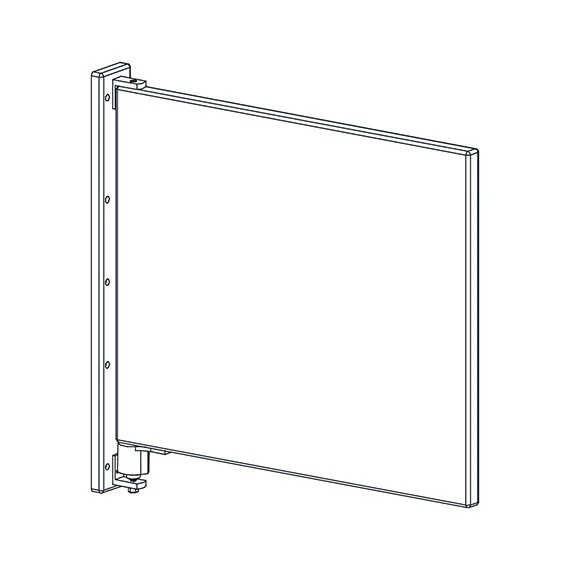

Swinging Gate
Gates can be mounted to walls or finished end panels on the circulation desk.
NOTE: The desired width of the gate and hinge type (single or double action) MUST BE quoted in advance and specified on the order.
CDR-1G 32 - ELEMENTARY HEIGHT, SINGLE ACTION HINGE
32”H x Specify”W
CDR-2G 32 - ELEMENTARY HEIGHT, DOUBLE ACTION HINGE
32”H x Specify”W
CDR-1G 39 - ELEMENTARY HEIGHT, SINGLE ACTION HINGE
39”H x Specify”W
CDR-2G 39 - ELEMENTARY HEIGHT, DOUBLE ACTION HINGE
39”H x Specify”W
accessories & mobile units
MObILE CUPBOARD UNIT
This unit is supplied with two shelves for the adult height and one shelf for the elementary height. The back is supplied with grommets for wire management.
A-27 - ELEMENTARY HEIGHT
26”H x 25”W x 20”D
A-28 - ADULT HEIGHT
36”H x 25”W x 20”D
Pencil drawer
The pencil drawer can be mounted under any desk or return arrangement where space permits. Drawer pull is satin chrome. Mounted with full extension ball bearing glides.
A-20 - STANDARD UNIT
MOBILE FILE CABINET
The elementary height unit is supplied with 1 box and 1 file drawer. The intermediate height is supplied with 2 boxes and 1 file drawer. The adult height is supplied with 1 box and 2 file drawers.
A-23 - ELEMENTARY HEIGHT
25”H x 17”W x 19”D
A-23A - INTERMEDIATE HEIGHT
31”H x 17”W x 19”D
A-23B - ADULT HEIGHT
36”H x 17”W x 19”D
KEYBOARD TRAY
The Pullout Keyboard Tray consists of metal ball-bearing glides fastened to a 3/4”T oak veneer plywood tray. Finished with edgeband on the front edge.
A-17 - STANDARD UNIT
HANGING FILE CABINET
Can be mounted below any open-spaced desk unit to provide storage. Provided with one box drawer and one file drawer.
A-19 - STANDARD UNIT
MOBILE OPEN SHELF UNIT
This unit is supplied with two shelves for the adult height and one shelf for the elementary height. The back is supplied with grommets for wire management.
A-29 - ELEMENTARY HEIGHT
26”H x 25”W x 20”D
A-30 - ADULT HEIGHT
36”H x 25”W x 20”D
