DOUBLE FACE STRAIGHT SHELVING
INSPIRE SERIES
The Inspire Series shelving also offers all of the colorful options, while keeping in line with the standard shelving sizes and starter / adder arrangements that are typical in most media centers. This shelving also features a more concealed mobile option with the Titan Mobile Cart. The precision welded steel of the Titan Cart makes this mobile shelving the strongest in the Industry.
+ PRODUCT SIZING

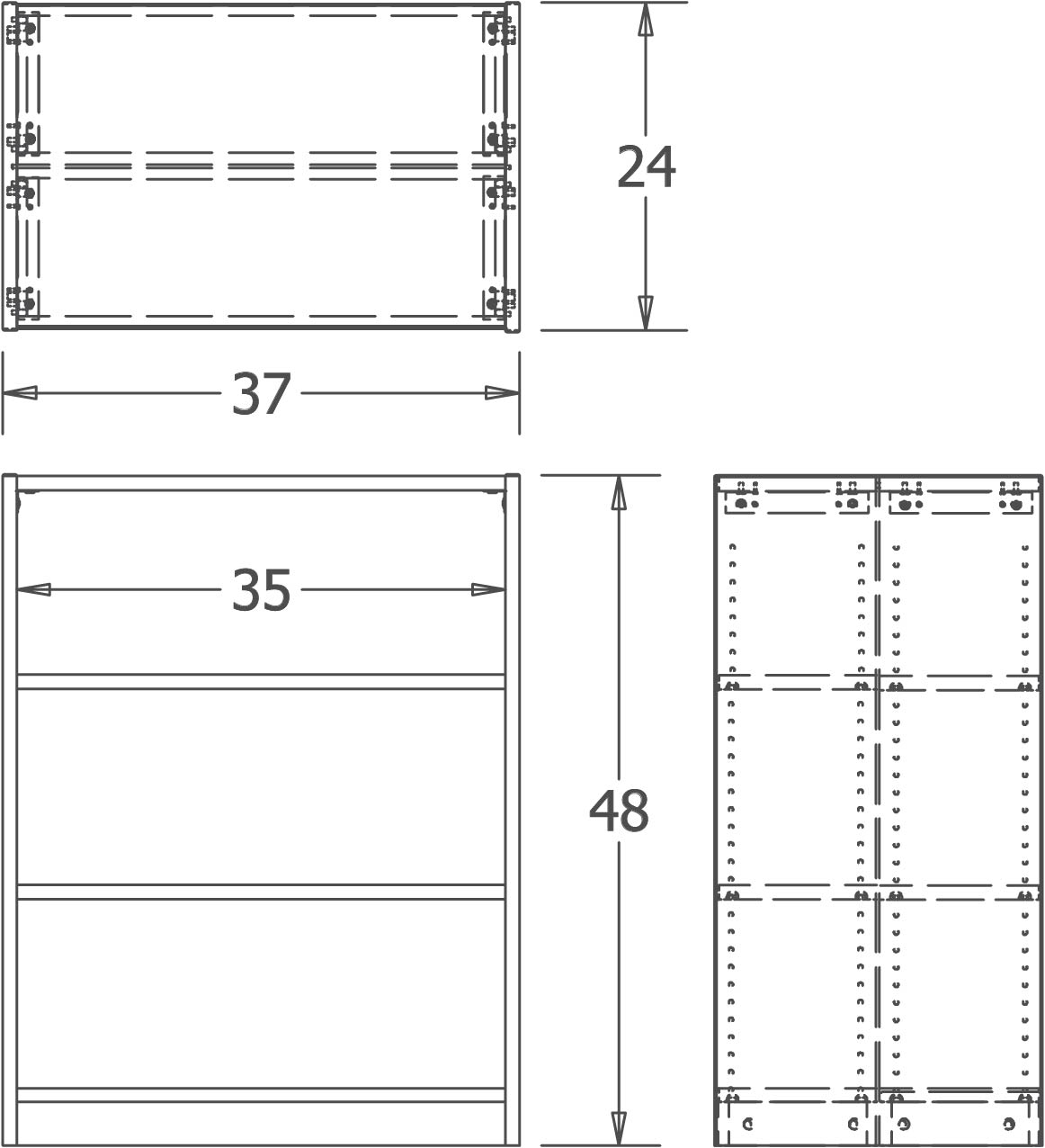

*PT-2SS-4824 unit shown

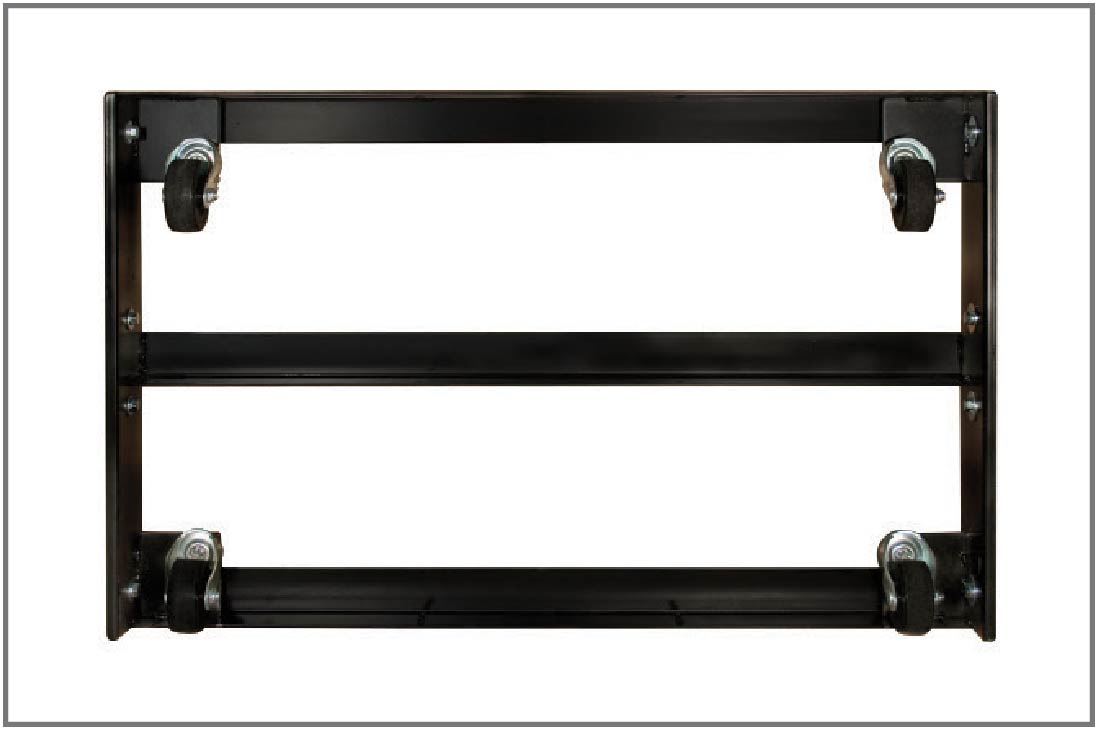

+ MOBILE UNITS
The Titan Mobile Cart is compatible only with 24"D units up to 60"H.
Product #: A-TC
+ SPECIFICATIONS
Top panels are internal (captured by upright panels). These panels are constructed of 1” thick veneer cores with .05” thick, horizontal grade, high pressure laminates.
Shelves and upright panels are constructed of 1” thick veneer cores with .05” thick, horizontal grade, high pressure laminates.
Mobile shelving uses the Titan Mobile Cart. The Titan Mobile Cart is made from 1/8” welded steel on four (4), 3” heavy duty ball bearing stem casters which are designed to bear the entire load of the shelving unit. All casters and metal parts are hidden by a veneer core laminated toe board. ONLY Double Face units 60"H and below may be made mobile.
Non mobile shelving has a bottom frame constructed of ¾” thick veneer core panels, with a laminated 4”H toe kick face. Hex head bolts pass through holes in the bottom frame and into threaded inserts in the upright panels, for a metal to metal hardware connection.
Exposed edges are banded using 3 mm PVC edging. PVC edges are eased to a 1/8” radius to remove sharp edges.
Top frames are connected to the shelving uprights with metal cleats. Connector bolts pass through holes in the metal cleats and into threaded inserts in the uprights and top panels, for a metal to metal hardware connection.
+ FINISH OPTIONS
Laminates
PVC Edgeband
MODELS
Product # |
Description |
Base Shelf # |
Adj. Shelf # |
Height |
Width |
Depth |
| PT-2SS-3624 | 36"H Double Face Shelving - Starter | 2 | 2 | 36" | 37" | 24" |
| PT-2SA-3624 | 36"H Double Face Shelving - Adder | 2 | 2 | 36" | 36" | 24" |
| PT-2SS-4224 | 42"H Double Face Shelving - Starter | 2 | 4 | 42" | 37" | 24" |
| PT-2SA-4224 | 42"H Double Face Shelving - Adder | 2 | 4 | 42" | 36" | 24" |
| PT-2SS-4824 | 48"H Double Face Shelving - Starter | 2 | 4 | 48" | 37" | 24" |
| PT-2SA-4824 | 48"H Double Face Shelving - Adder | 2 | 4 | 48" | 36" | 24" |
| PT-2SS-6024 | 60"H Double Face Shelving - Starter | 2 | 6 | 60" | 37" | 24" |
| PT-2SA-6024 | 60"H Double Face Shelving - Adder | 2 | 6 | 60" | 36" | 24" |
| PT-2SS-7224 | 72"H Double Face Shelving - Starter | 2 | 8 | 72" | 37" | 24" |
| PT-2SA-7224 | 72"H Double Face Shelving - Adder | 2 | 8 | 72" | 36" | 24" |
| PT-2SS-8224 | 82"H Double Face Shelving - Starter | 2 | 10 | 82" | 37" | 24" |
| PT-2SA-8224 | 82"H Double Face Shelving - Adder | 2 | 10 | 82" | 36" | 24" |
