BAY SHELVING
ENVISION SERIES
The Envision Series shelving offers a more modern approach to your shelving needs with sleek aluminum legs and contemporary casters. Single sided radius units can be combined with some tables and lounge seating to create multipurpose collaborative areas. Dry Erase marker board backs can also be added to single sided floor shelving, perfect for study groups and school project areas.

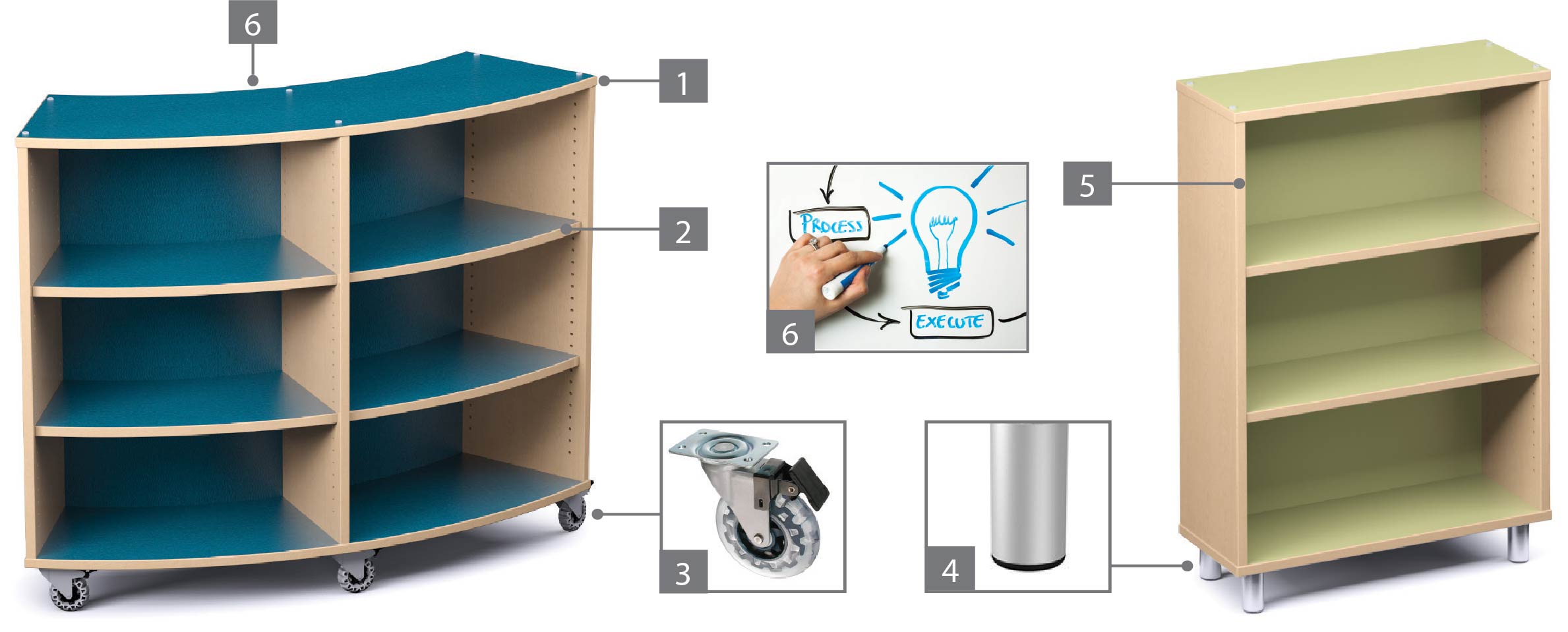

+ SPECIFICATIONS
Top panels are external (not captured by upright panels) and are constructed of 1” thick veneer core plywood with .05” thick, horizontal grade, High Pressure Laminates. Through bolts will pass through machined holes in the tops and bottoms and into threaded inserts in the upright panels, for a metal to metal hardware connection.
Shelves and upright panels are constructed of 1” thick veneer cores with .05” thick, horizontal grade, high pressure laminates.
Mobile shelving includes 5” overall height, swivel and locking casters that are mounted to the bottom panel with through bolts that pass through the caster plate and into threaded T-nuts. This allows for a very strong metal to metal hardware connection.
Non-mobile shelving includes 4” aluminum post legs that are mounted to the bottom panel with bolts that pass through the leg plate and into threaded metal inserts.
Exposed edges are banded using 3 mm PVC edging. PVC edges are eased to a 1/8” radius to remove sharp edges.
Optional dry erase marker board add-on. This option is only available for single sided units that are not wall shelving.
+ FINISH OPTIONS
Laminates
PVC Edgeband
SINGLE FACE - 1 BAY
SINGLE FACE - 1 BAY
+ PRODUCT SIZING

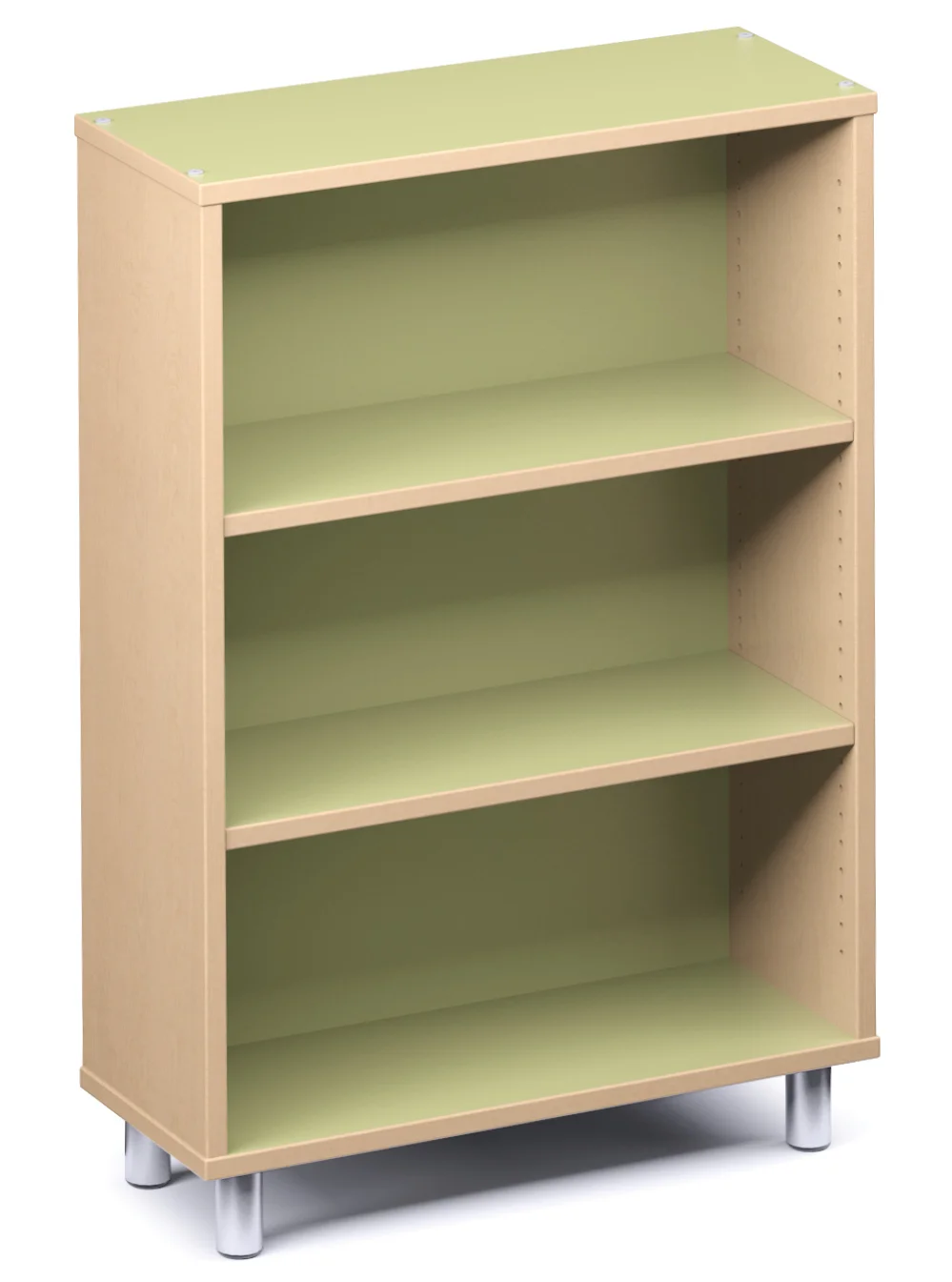

*PT-1S-48-1B unit shown
Product # |
Description |
Base Shelf # |
Adj. Shelf # |
Height |
Width |
Depth |
| PT-1S-36-1B | 36"H Single Sided Shelving - 1 Bay | 1 | 1 | 36" | 32" | 12" |
| PT-1S-42-1B | 42"H Single Sided Shelving - 1 Bay | 1 | 2 | 42" | 32" | 12" |
| PT-1S-48-1B | 48"H Single Sided Shelving - 1 Bay | 1 | 2 | 48" | 32" | 12" |
| PT-1S-60-1B | 60"H Single Sided Shelving - 1 Bay | 1 | 3 | 60" | 32" | 12" |
| PT-1S-72-1B | 72"H Single Sided Shelving - 1 Bay | 1 | 4 | 72" | 32" | 12" |
| PT-1S-82-1B | 82"H Single Sided Shelving - 1 Bay | 1 | 5 | 82" | 32" | 12" |
SINGLE FACE - 2 BAY
SINGLE FACE - 2 BAY
+ PRODUCT SIZING
*PT-1S-48-2B unit shown
Product # |
Description |
Base Shelf # |
Adj. Shelf # |
Height |
Width |
Depth |
| PT-1S-36-2B | 36"H Single Sided Shelving - 2 Bay | 2 | 2 | 36" | 63" | 12" |
| PT-1S-42-2B | 42"H Single Sided Shelving - 2 Bay | 2 | 4 | 42" | 63" | 12" |
| PT-1S-48-2B | 48"H Single Sided Shelving - 2 Bay | 2 | 4 | 48" | 63" | 12" |
| PT-1S-60-2B | 60"H Single Sided Shelving - 2 Bay | 2 | 6 | 60" | 63" | 12" |
| PT-1S-72-2B | 72"H Single Sided Shelving - 2 Bay | 2 | 8 | 72" | 63" | 12" |
| PT-1S-82-2B | 82"H Single Sided Shelving - 2 Bay | 2 | 10 | 82" | 63" | 12" |
SINGLE FACE - 3 BAY
SINGLE FACE - 3 BAY
+ PRODUCT SIZING
*PT-1S-48-3B unit shown
Product # |
Description |
Base Shelf # |
Adj. Shelf # |
Height |
Width |
Depth |
| PT-1S-36-3B | 36"H Single Sided Shelving - 3 Bay | 3 | 3 | 36" | 94" | 12" |
| PT-1S-42-3B | 42"H Single Sided Shelving - 3 Bay | 3 | 6 | 42" | 94" | 12" |
| PT-1S-48-3B | 48"H Single Sided Shelving - 3 Bay | 3 | 6 | 48" | 94" | 12" |
| PT-1S-60-3B | 60"H Single Sided Shelving - 3 Bay | 3 | 9 | 60" | 94" | 12" |
| PT-1S-72-3B | 72"H Single Sided Shelving - 3 Bay | 3 | 12 | 72" | 94" | 12" |
| PT-1S-82-3B | 82"H Single Sided Shelving - 3 Bay | 3 | 15 | 82" | 94" | 12" |
DOUBLE FACE - 1 BAY
DOUBLE FACE - 1 BAY
+ PRODUCT SIZING
*PT-2S-48-1B unit shown
Product # |
Description |
Base Shelf # |
Adj. Shelf # |
Height |
Width |
Depth |
| PT-2S-36-1B | 36"H Double Sided Shelving - 1 Bay | 2 | 2 | 36" | 32" | 24" |
| PT-2S-42-1B | 42"H Double Sided Shelving - 1 Bay | 2 | 4 | 42" | 32" | 24" |
| PT-2S-48-1B | 48"H Double Sided Shelving - 1 Bay | 2 | 4 | 48" | 32" | 24" |
| PT-2S-60-1B | 60"H Double Sided Shelving - 1 Bay | 2 | 6 | 60" | 32" | 24" |
DOUBLE FACE - 2 BAY
DOUBLE FACE - 2 BAY
+ PRODUCT SIZING
*PT-2S-48-2B unit shown
Product # |
Description |
Base Shelf # |
Adj. Shelf # |
Height |
Width |
Depth |
| PT-2S-36-2B | 36"H Double Sided Shelving - 2 Bay | 4 | 4 | 36" | 63" | 24" |
| PT-2S-42-2B | 42"H Double Sided Shelving - 2 Bay | 4 | 8 | 42" | 63" | 24" |
| PT-2S-48-2B | 48"H Double Sided Shelving - 2 Bay | 4 | 8 | 48" | 63" | 24" |
| PT-2S-60-2B | 60"H Double Sided Shelving - 2 Bay | 4 | 12 | 60" | 63" | 24" |
DOUBLE FACE - 3 BAY
DOUBLE FACE - 3 BAY
+ PRODUCT SIZING
*PT-2S-48-3B unit shown
Product # |
Description |
Base Shelf # |
Adj. Shelf # |
Height |
Width |
Depth |
| PT-2S-36-3B | 36"H Double Sided Shelving - 3 Bay | 6 | 6 | 36" | 94" | 24" |
| PT-2S-42-3B | 42"H Double Sided Shelving - 3 Bay | 6 | 12 | 42" | 94" | 24" |
| PT-2S-48-3B | 48"H Double Sided Shelving - 3 Bay | 6 | 12 | 48" | 94" | 24" |
| PT-2S-60-3B | 60"H Double Sided Shelving - 3 Bay | 6 | 18 | 60" | 94" | 24" |
